RELY ON THE

ROKBAK RA30

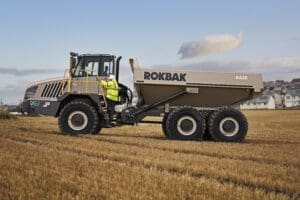

The RA30 articulated hauler is made for the toughest jobs and roughest sites – from quarries to infrastructure developments to commercial construction projects. With true independent front suspension as standard, it offers more control and comfort for your operators. Driving up productivity, no matter how tough the conditions.

  • Max Payload

    28 mt / 30.9 t

  • Engine power

    276 kW / 370 hp

  • Heaped capacity

    17.5mᶟ / 22.9ydᶟ

  • Maximum torque

    1880 Nm @ 1400 rpm

download the brochure

Effective, productive, powerful

The RA30’s new transmission and high performance engine improve fuel efficiency, operator comfort and deliver power when you need it.

Built for the toughest conditions

With adaptive 8 speed shifting and selectable traction control, you get the best of both worlds - faster ground speeds when conditions are good and more tractive effort when conditions are tough.

Optimal control, outstanding safety

The transmission retardation system is combined with exhaust brakes and fully enclosed oil-cooled multidisc brakes to cut operating costs and increase safety and stability.

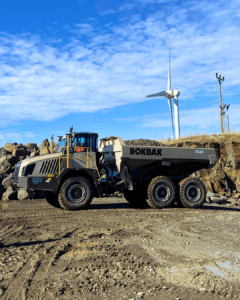

Smaller and robust Rokbak RA30

Easy servicing for maximum uptime

Ground level test points, a fully tilting cab and an electronically raised hood make servicing quick and easy – maximising uptime.

Smooth ride for optimum productivity

Every Rokbak hauler guarantees excellent operator ride comfort, combined with constant wheel ground contact and high machine stability that results in high productivity.

Peace of mind

Out of sight doesn’t have to mean out of mind. Our bespoke Haul Track system, gives you more visibility and control of your machine with live data viewable on desktop computers or mobile devices. So wherever you are, you can protect your investment.

Find your nearest dealership

Specification

    • Maximum Payload

      28 Tonne

      30.9 US Ton

    • Heaped Capacity

      17.5 mᶟ

      22.9 ydᶟ

    • Gross Power

      276 kW

      370 hp

    • EU Stage V Models

      -

      Tier 4 Final Models

      -

      Tier 2 Models

      -

    • Net Distribution

      kg

      lb

      kg

      lb

      kg

      lb

    • Front Axle

      13,213

      29,129

      13,540

      29,851

      13,266

      29,247

    • Centre Axle

      5,872

      12,945

      5,486

      12,095

      5,460

      12,037

    • Rear Axle

      5,826

      12,844

      5,586

      12,315

      5,493

      12,110

    • Vehicle, Net

      24,911

      54,919

      24,612

      54,260

      24,219

      53,394

    • Payload

      28,000

      61,729

      28,000

      61,729

      28,000

      61,729

    • Gross Distribution

      -

      -

      -

      -

      -

      -

    • Front Axle

      15,980

      35,300

      15,852

      34.948

      15,097

      33,283

    • Centre Axle

      18,319

      40,386

      18,225

      40,179

      18,256

      40,248

    • Rear Axle

      18,339

      40,386

      18,535

      40,863

      18,866

      41,592

    • Vehicle Gross

      52,638

      116,046

      52,612

      115,990

      52,219

      115,123

    • Ancillary Weights

      -

      -

      -

      -

      -

      -

    • Frame

      3,727

      8,217

      3,727

      8,217

      3,727

      8,217

    • Body

      3,776

      8,325

      3,776

      8,325

      3,776

      8,325

    • Hoists, Pair

      530

      1,170

      530

      1,170

      530

      1,170

    • Litres

      US gal

    • Fuel Tank

      370

      98

    • Hydraulic System (steering and body)

      164

      43.3

    • Engine Crankcase

      34

      9

    • Cooling System

      48.8

      12.9

    • Transmission (inc filters and cooler)

      50.2

      13.3

    • Differential – Front and Rear (each)

      28.8

      7.6

    • Differential – Centre

      31

      8.2

    • Planetaries – (each)

      8.5

      2.2

    • Brake Cooling System

      -

      -

    • DEF System*

      38

      10

    • *only applicable on Tier 4 Final/Stage V

    • Tyres

      23.5 R25

      -

      750/65

      -

    • Loaded Front

      406 kPa

      59 Psi

      310 kPa

      45 Psi

    • Loaded Rear

      462 kPa

      67 Psi

      351 kPa

      51 Psi

    • mm

      ft-in

    • Length

      9, 930

      32-6

    • Width

      2, 860

      9-5

    • Height

      3, 560

      11-8

    • Maximum Payload

      38 Tonne

      41.9 US Ton

    • Heaped Capacity

      23.0 mᶟ

      30.3 ydᶟ

    • Gross Power

      331 kW

      444 hp

    • EU Stage V Models

      -

      Tier 4 Final Models

      -

      Tier 2 Models

      -

    • Net Distribution

      kg

      lb

      kg

      lb

      kg

      lb

    • Front Axle

      17,046

      37,580

      17,001

      37,481

      16,743

      36,912

    • Centre Axle

      7,789

      17,171

      7,385

      16,281

      7,445

      16,431

    • Rear Axle

      7,586

      16,724

      7,521

      16,581

      7,393

      16,299

    • Vehicle, Net

      32,421

      71,476

      31,907

      70,343

      31,581

      69,624

    • Payload

      38,000

      83,775

      38,000

      83,775

      38,000

      83,775

    • Gross Distribution

      -

      -

      -

      -

      -

      -

    • Front Axle

      19,040

      41,976

      18,500

      40,786

      18,742

      41,319

    • Centre Axle

      25,653

      56,555

      25,100

      55,336

      25,422

      56,045

    • Rear Axle

      25,646

      56,555

      25,160

      55,468

      25,485

      56,184

    • Vehicle Gross

      70,339

      155,070

      68,760

      151,590

      69,649

      153,548

    • Ancillary Weights

      -

      -

      -

      -

      -

      -

    • Frame

      5,468

      12,055

      5,468

      12,055

      5,450

      12,015

    • Body

      5,400

      11,905

      5,400

      11,905

      5,400

      11,905

    • Hoists, Pair

      660

      1,455

      660

      1,455

      660

      1,455

    • Litres

      US gal

    • Fuel Tank

      500

      132

    • Hydraulic System (steering and body)

      341

      90

    • Engine Crankcase

      45

      11.8

    • Cooling System

      70

      18.5

    • Transmission (inc filters and cooler)

      48

      12.7

    • Differential – Front and Rear (each)

      38

      10

    • Differential – Centre

      39

      10.3

    • Planetaries (each)

      8.5

      2.2

    • Brake Cooling System

      188

      49.7

    • DEF System*

      38

      10

    • Drop Box

      17

      4.5

    • * only applicable on Tier 4 Final/EU Stage V

    • Tyres

      29.5 R25

      -

    • Loaded Front

      372 kPa

      54 Psi

    • Loaded Rear

      469 kPa

      68 Psi

    • These figures are for total contact area, total area within the ellipse of contact

    • mm

      ft-in

    • Length

      11,115

      35-5

    • Width

      3,358

      11-0

    • Height

      3,945

      13-0
